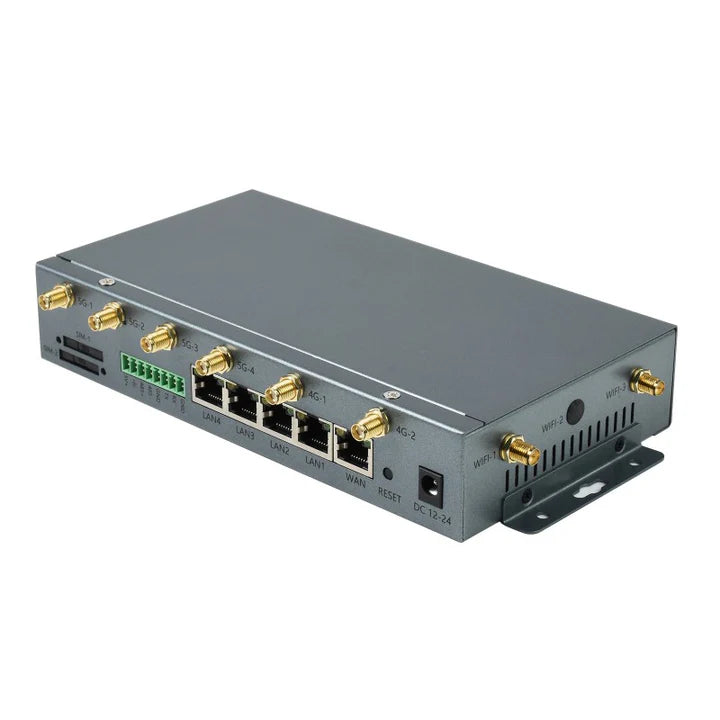

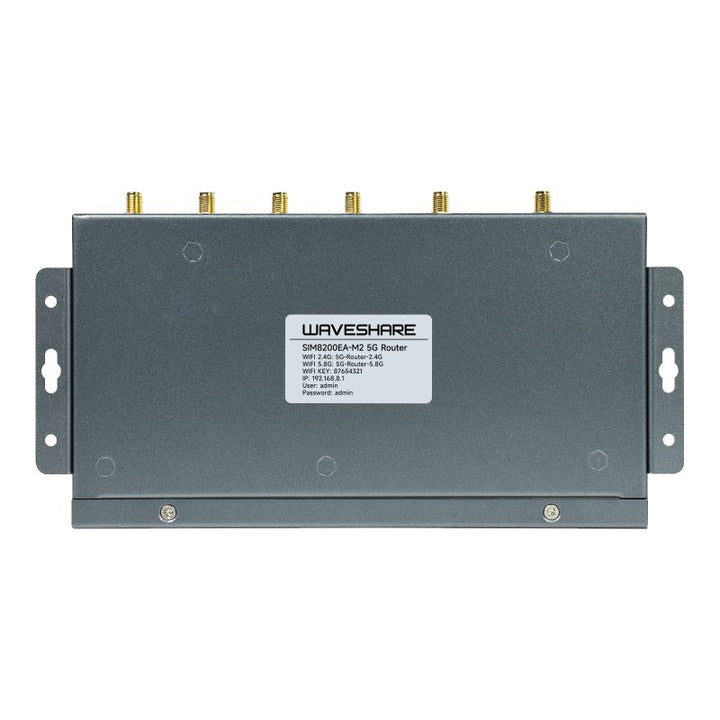

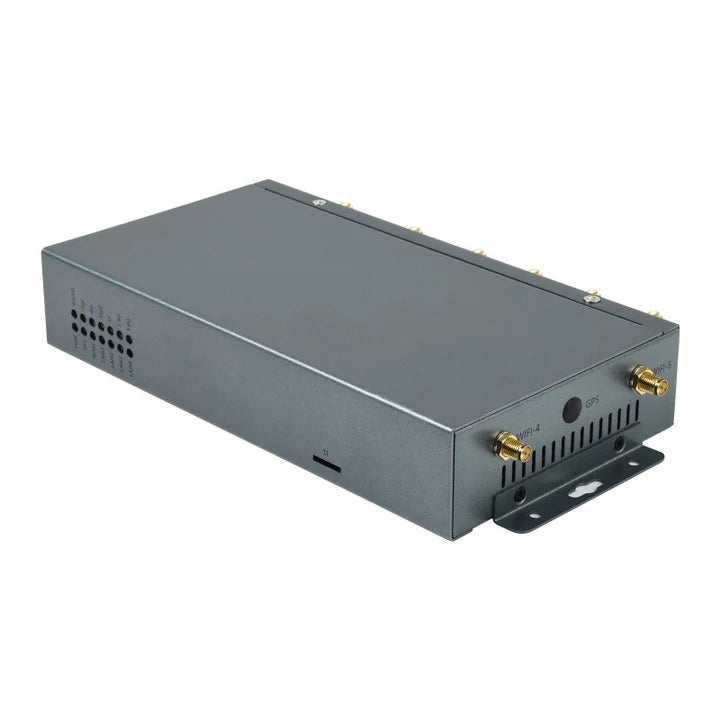

SIM8200EA-M2 industrial 5G Router, wireless CPE, snapdragon X55 onboard, Gigabit Ethernet and WiFi, 5G/4G/3G support
| 5G wireless specification | |
|---|---|
| Frequency band |
5G Sub-6G (SA): n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78 5G Sub-6G (NSA): n41, n77, n78 |
|
LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
|
|
LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48 |
|
|
WCDMA: B1, B2, B3, B4, B5, B8 |
|
|
GNSS: GPS, GLONASS, BeiDou, Galileo, and QZSS |
|
| Data rate |
5G Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL) |
|
LTE: 1 Gbps (DL) / 200 Mbps (UL) |
|
|
HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL) |
|
| WiFi wireless specification | |
| WiFi standard | IEEE802.11b/g/n, IEEE802.11Wi-Fi 5(a/b/g/n/ac) compliant, 2.4GHz, 5.8GHz, 2T2R, supports AP mode |
| Data rate | 2.4GHz: up to 300Mbps 5.8GHz: up to 866Mbps |
| Authentication | supports encryption methods including WEP, WPA, WPA2, etc. |

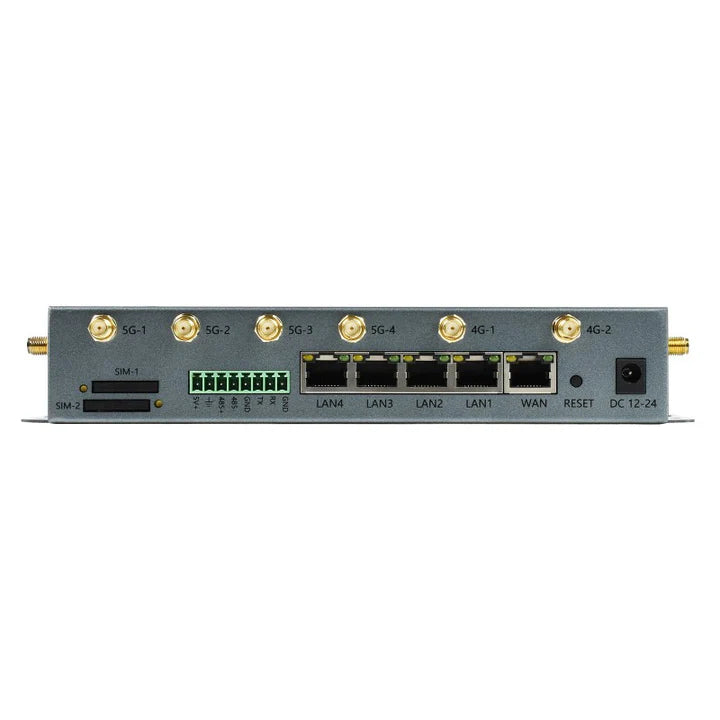

| Interfaces | |
| M.2 | 1x connector, comes with 1x SIM8200EA-M2 module by default, supports other 5G modules |
| mini PCIE | 3x connectors, comes with 1x 2.4GHz and 1x 5.8GHz WiFi module, allows connecting one more 4G module |
| WAN | 1x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection (the WAN RJ45 can be used as LAN RJ45 port, so there could be totally 5x LAN RJ45 port) |
| LAN | 4x 10 / 100 / 1000M Ethernet, auto-negotiation MDI/MDIX, embedded 1.5KV electromagnetic isolation protection |
| Serial port | 1x RS232 + 1x RS485, embedded ESD protection |
| SIM/UIM card slot | drawer SIM card slot, prevents the SIM card from dropping out, embedded 15KV ESD protection |

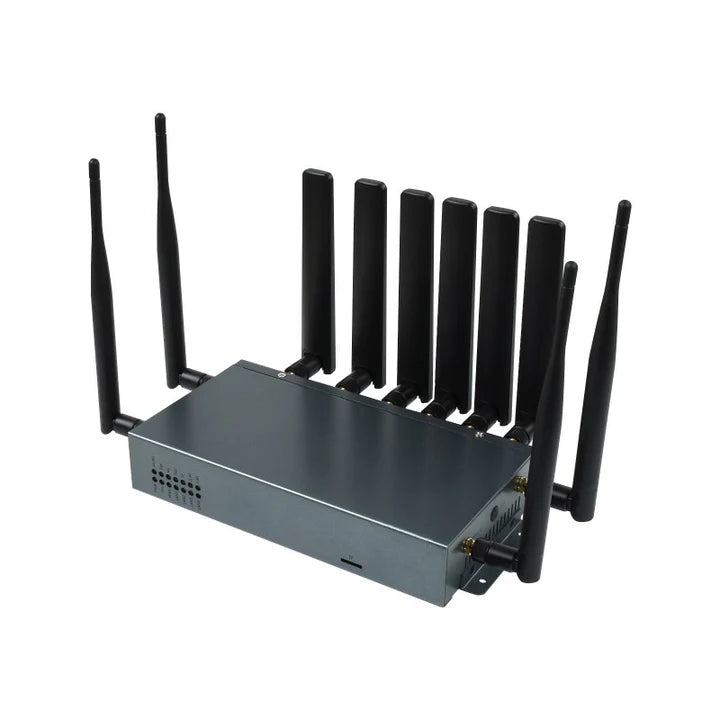

| Antenna connector | SMA standard antenna connector, comes with 6x 5G antennas, 4x WiFi antennas by default |
| TF card slot | for external storage |
| Power supply | standard power supply interface, supply 12~24V input, embedded power supply phase-reversal protection and over-voltage protection |
| RESET button | press and hold for 5~10s then release, restores the router to factory setting |
| Indicators | PWR, SYS, 5G, 4G, WAN, LAN, TF, 2.4G, 5.8G status indicators |
| Power supply | |
| Power adapter | DC 12V/2A |
| Power input range | 12 ~ 24V |
| Power consumption | data mode: ＜1A@12V, idle mode: ＜500mA@l2V |
| Mechanical | |
| Case | Metal case, IP30 protection level |
| Dimensions | 195 × 107 × 37mm |
| Operating temperature | -35 ~ +75ºC |
| Storage temperature | -40 ~ +85ºC |
| Relative humidity | 95% (non-condensing) |
